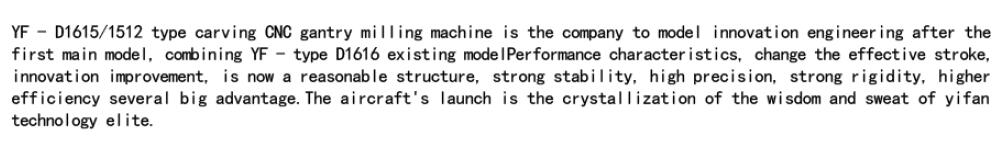

Product name: YF—D1615/1512
Category: Engraving Product model: YF-D1615/1512 Product brand: yifan Manufacturer: Ninghai Yifan CNC Machinery Co.,Ltd. Price: Negotiation/Telephone Inquiry
Product details
| ITEM | Unit | YF-D1615 | YF-D1512 |
| XYZ axis work schedule | mm | 1500*1600*800 | 1500*1200*600 |
| XYZ position precision | mm | 0.01 | 0.01 |
| XYZ repeat positioning accuracy | mm | <0.005 | <0.005 |
| Table size | mm | 1600*1500 | 1500*1200 |
| The biggest processing XZ space | mm | 1635*1000 | 1635*800 |
| Maximun processing speed | mm/min | 8000 | 8000 |
| The highest spindle seed | r/min | 12000 | 12000 |
| Spindle power | kw | 7.5/11 | 7.5/11 |
| Maximum working load | kg | 2500 | 2000 |
| The maximum output voltage | v | 380 | 380 |
| Machine net weight | T | 13 | 10 |
| The spindle taper/gripping the handle | BT40 | BT40 | |
| XYZ largest dimension | mm | 2600*4500*3500 | 2400*3500*3200 |
| Lubrication system | Adjustable automatic lubricating device | Adjustable automatic lubricating device | |
| Numerical control system | Taiwan SYNTEC | Taiwan SYNTEC | |
| Servo motor | Japan YASKAWA | Japan YASKAWA | |
| screw | Taiwan HIWIN | Taiwan HIWIN | |
| guide | Taiwan HIWIN | Taiwan HIWIN |
